| Model |
LB75 |
LB100 |
LB150 |
LB200 |
LB300 |
LB600 |
| Rated Capacity(ton) |
0.75 |
1 |
1.5 |
2 |
3 |
6 |
| Lifting
Height (meter) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
| Test Load (ton) |
1.125 |
1.5 |
2.25 |
3 |
4.5 |
7.5 |
| Min.distance
between hook H(mm) |
320 |
320 |
360 |
365 |
470 |
565 |
| Pull on lever to lift capacity(kg.f) |
21 |
23 |
24 |
30 |
32 |
34 |
| No. of load
chain falls |
1 |
1 |
1 |
1 |
1 |
2 |
| Diameter of load chain(mm) |
6 |
6 |
8 |
8 |
10 |
10 |
| Length of
Lever(mm) D |
280 |
280 |
410 |
410 |
410 |
410 |

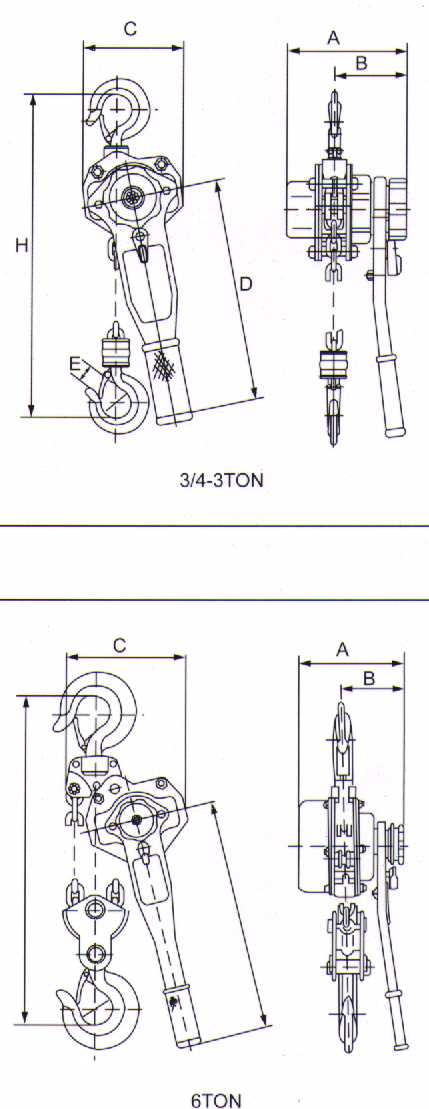

| Dimensions (mm). . .
. . . . . . . . . . .A |
156 |
156 |
176 |
176 |
202 |
202 |
| B |
94 |
94 |
103 |
103 |
112 |
112 |
| C |
132 |
132 |
162 |
162 |
185 |
230 |
| dia |
38 |
38 |
42 |
45 |
50 |
65 |
| E |
21 |
21 |
26 |
28 |
32 |
42 |
| Packing
size(LxHxW) (cm) |
42x22x19 |
42x22x19 |
57x24x21 |
57x24x21 |
63x27x23 |
63x27x23 |
| Net Weight (kg) |
7.5 |
8 |
11 |
11.5 |
24 |
27 |
